Proform Screed Rail

Need Concrete? 24hr Service Call Now! 01892 660 510

Proform screed rail is now available in 2 sizes. Proform 100 is suitable for slabs of a thickness of 100mm to 175mm. Proform 137 is suitable for slabs of a thickness 137mm to 225mm. Since designing the original Proform screed rail product we have made a number of design improvements. The top rail is now much more robust and totally secure when the concrete has cured. We have added additional scribe lines for the drilling holes for dowel bars suitable for concrete slabs at depth of 100mm 150mm and 200mm. If you need to remove the top rail after curing please contact us.

Advantages of Proform

Reduces labour costs
No Roadforms required
Can be used with dowel bars and mesh
No damaging of road forms
No need for fibre board
Makes large pours in to workable size slabs
No need for timber

Saves time and money
Integral expansion joint / crack inducer
Readily available
No hire of road forms
No saw cutting in concrete
Can be used as just a form

Robust and tough
Large areas can be poured in one
Available in 3 metre beams
Easy to use and join
Can be used with roller strikers, vibrating tamps, or even timber
Can be used as just a crack inducer

Faster pouring and set up times
Lightweight
No cleaning of road forms
One person can install
Can be used over existing concrete if required
Adaptable for different depth of slab

Industrial Concrete Ramp

Recycling Yard Industrial Ramp April 2011 (Concrete Poured)

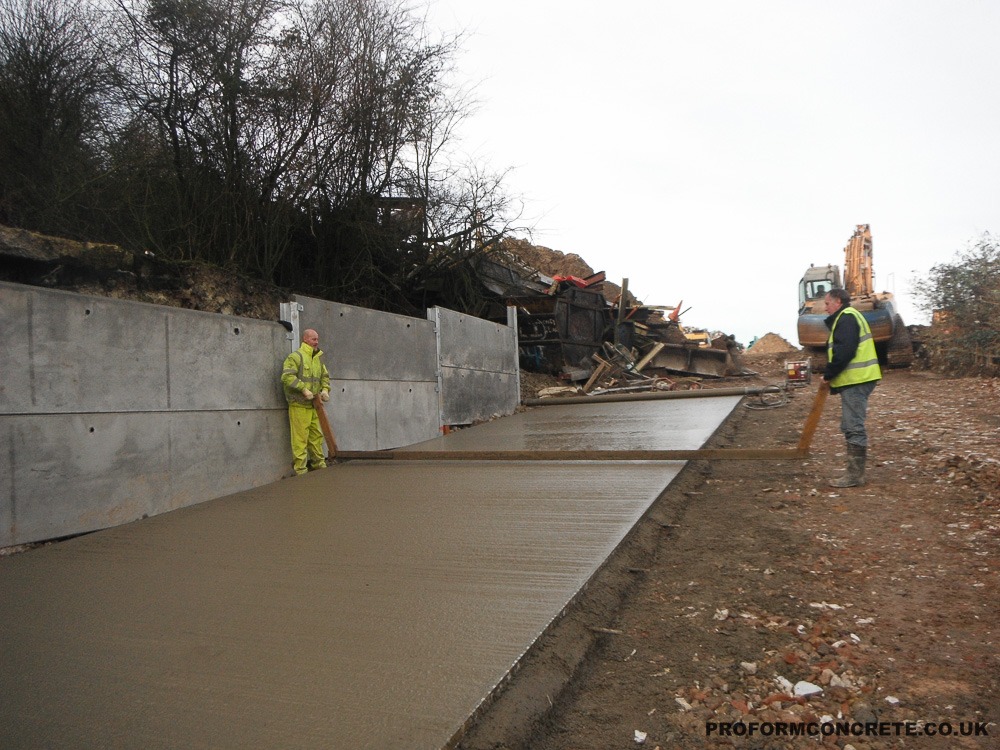

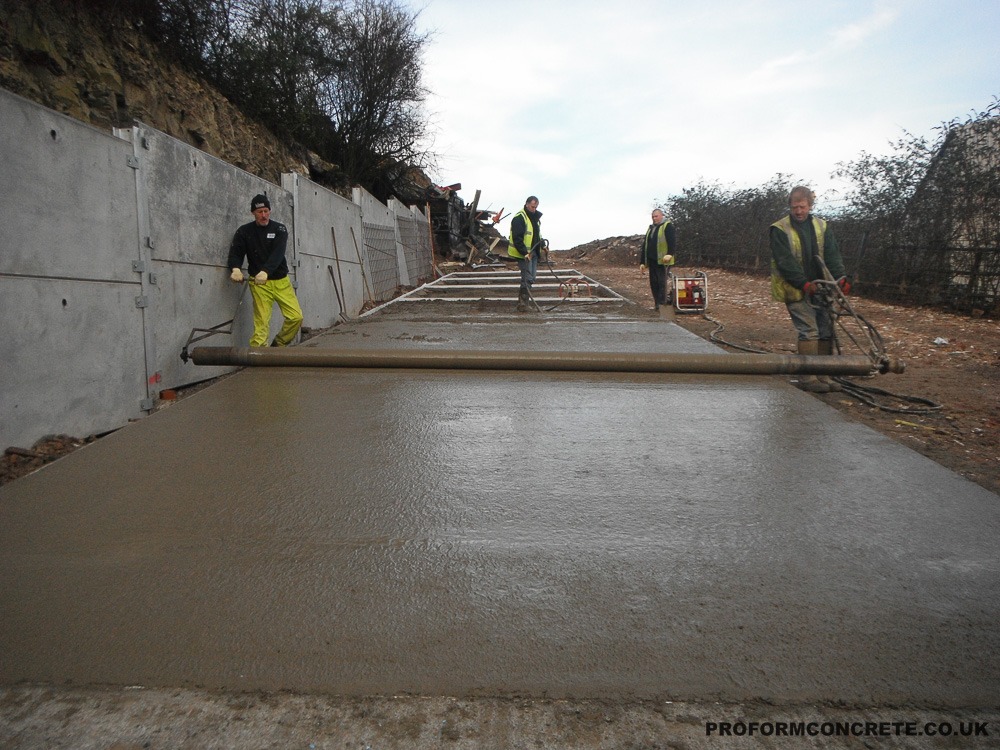

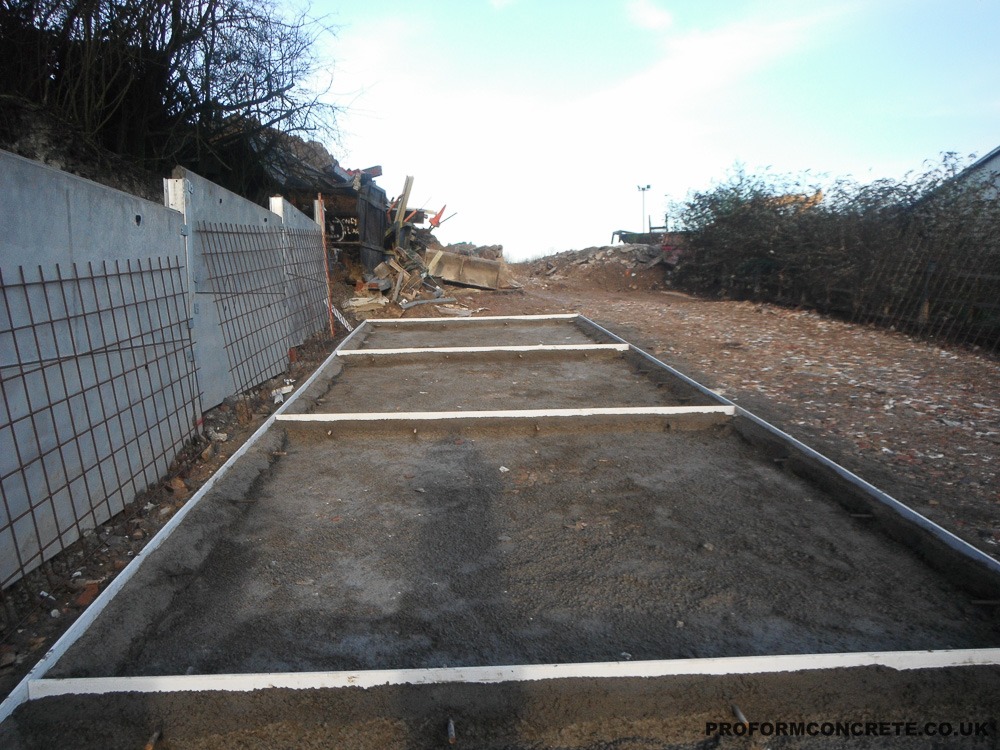

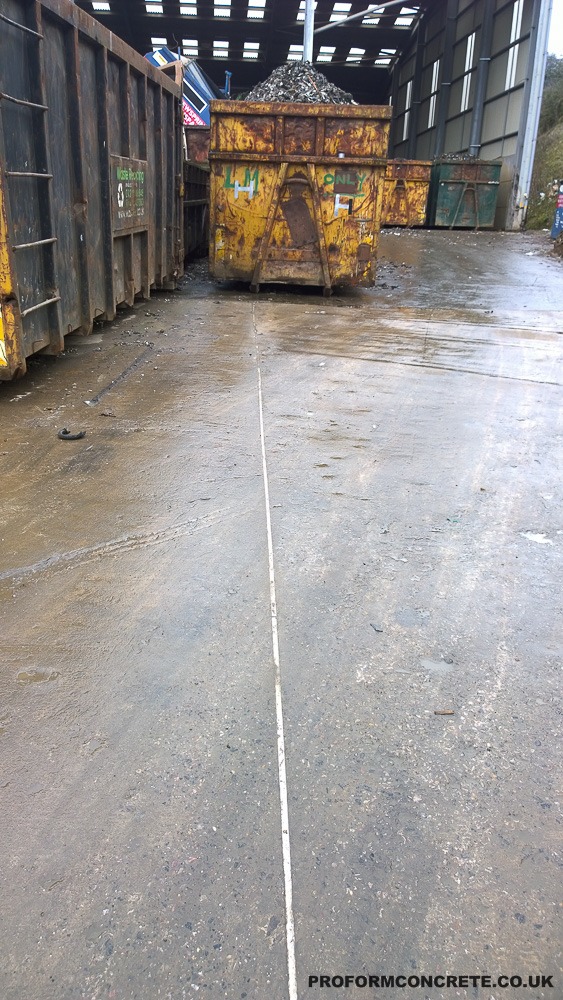

This set of images show the laying of an industrial concrete ramp at a recycling depot. The concrete has intensive traffic with heavy skips being loaded and unloaded constantly. The final image shows the Proform screed rail clearly standing up to the test of time.

Concrete Stable Yard

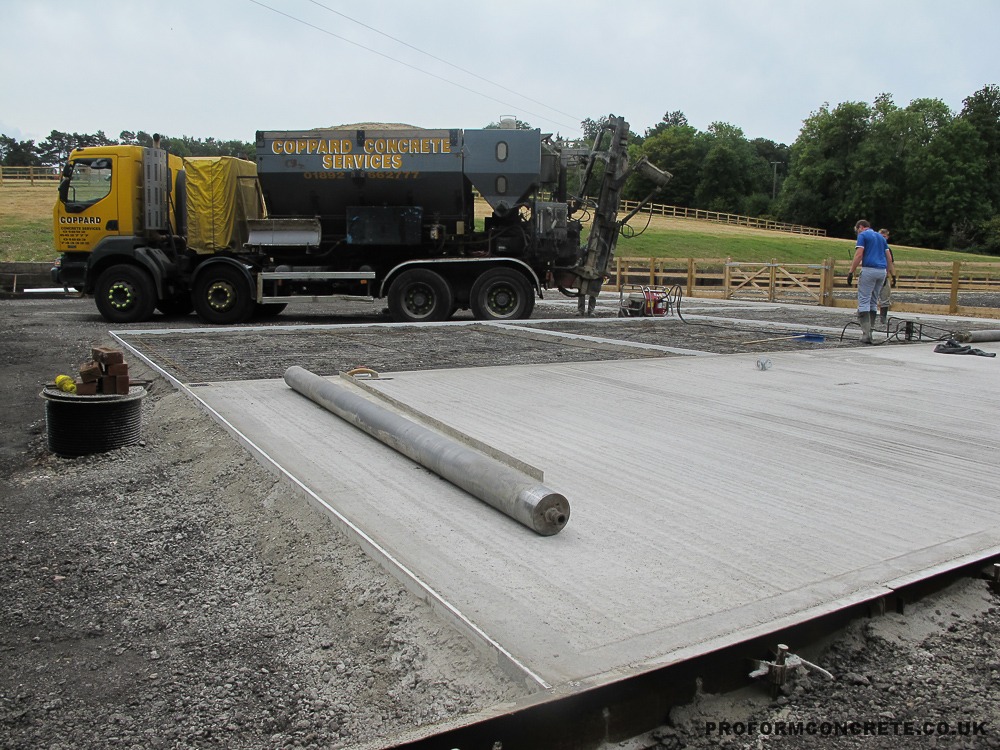

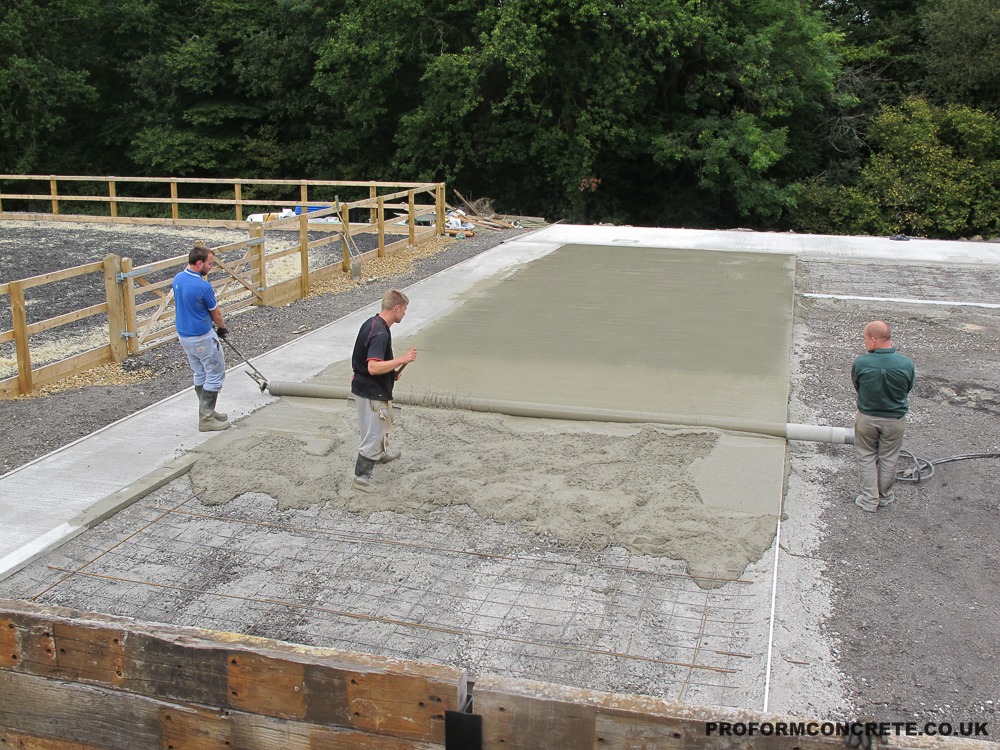

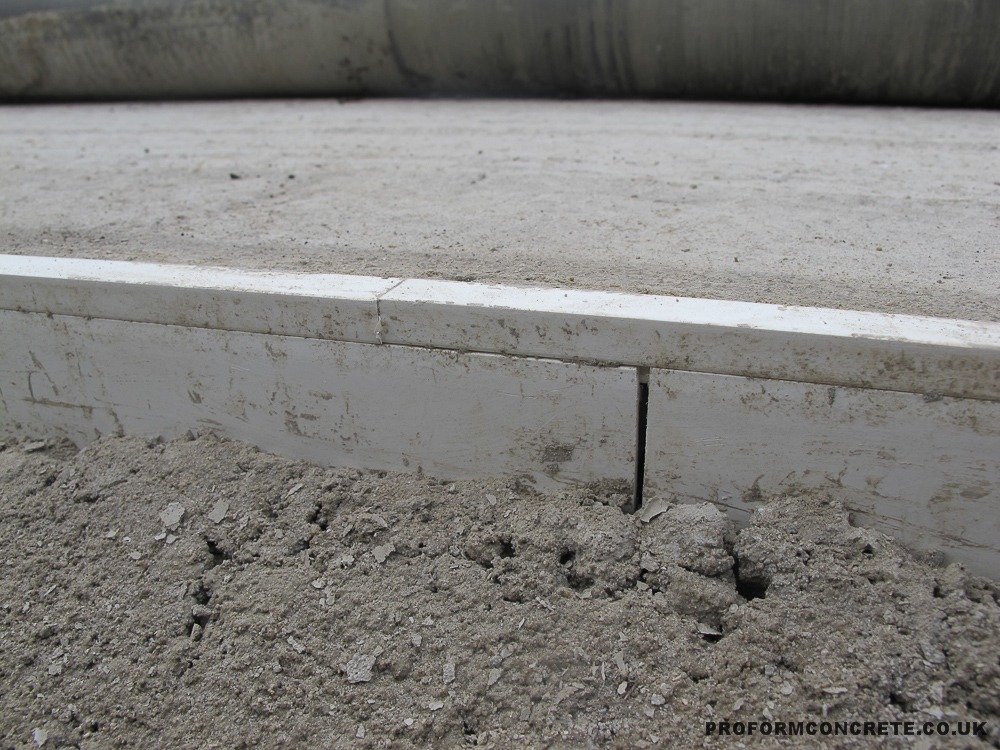

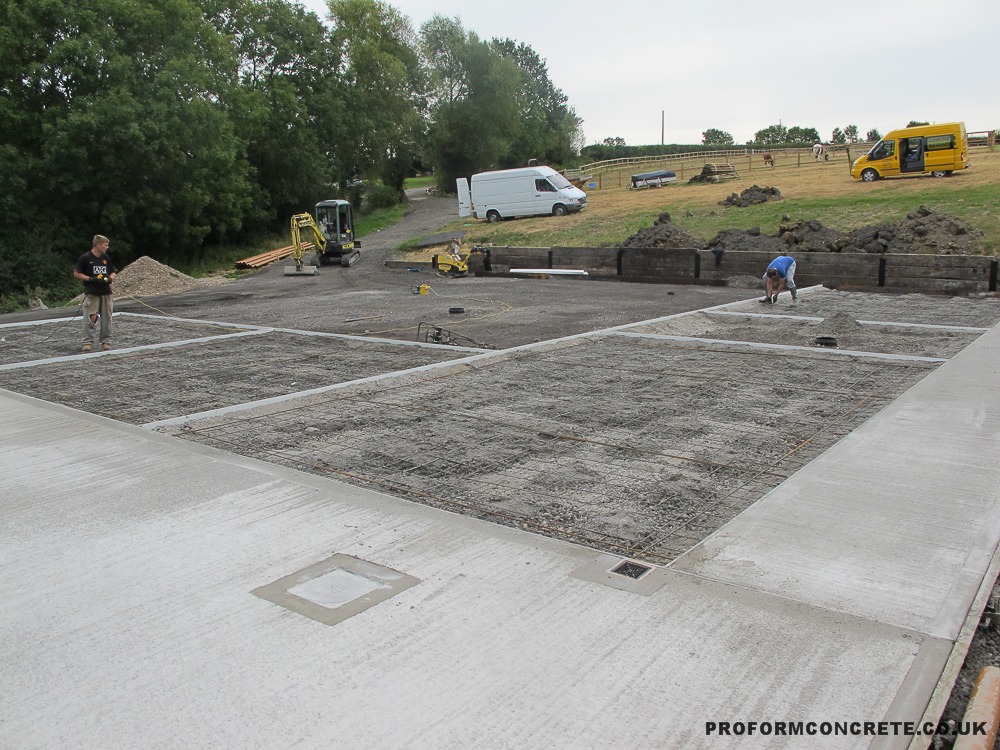

This set of images shows how easy it is to set out and pour large areas of concrete without the need for a large team of men on site.

Concrete Garden Patio

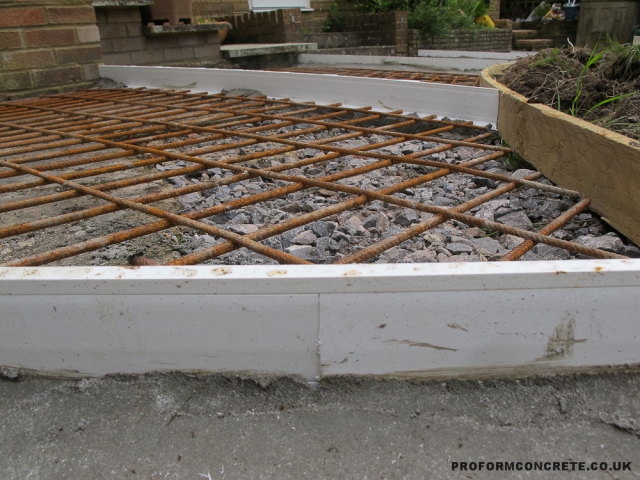

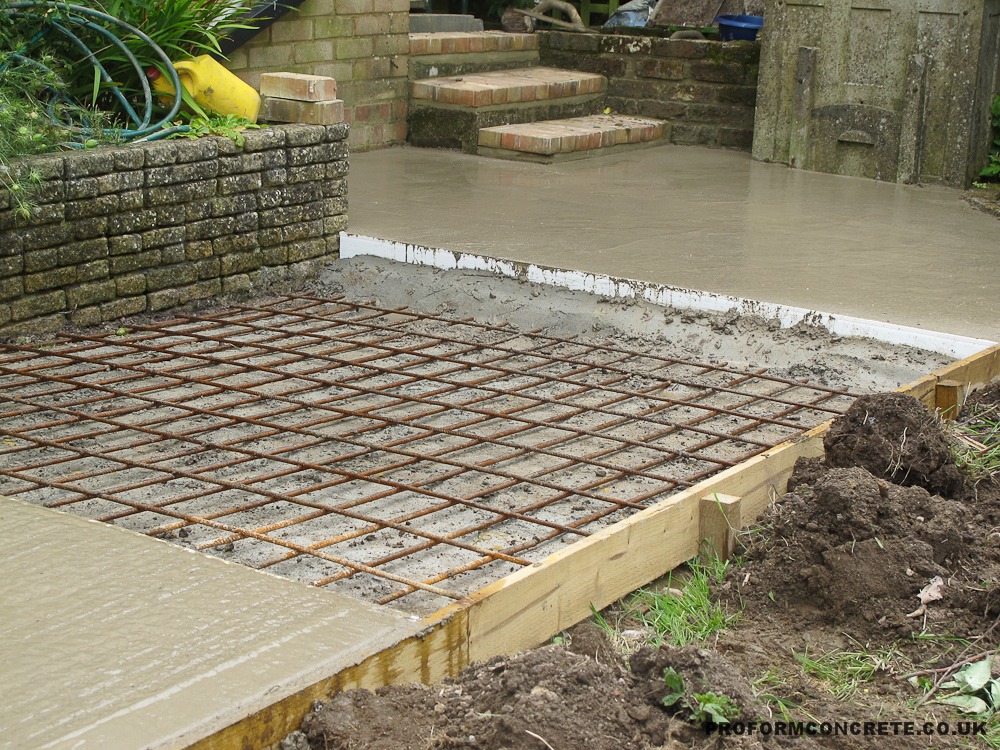

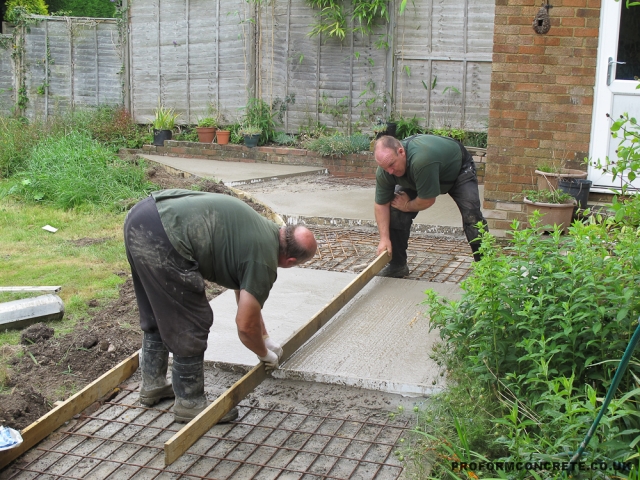

This set of images shows the Proform Screed Rail being used on a small concrete garden patio.

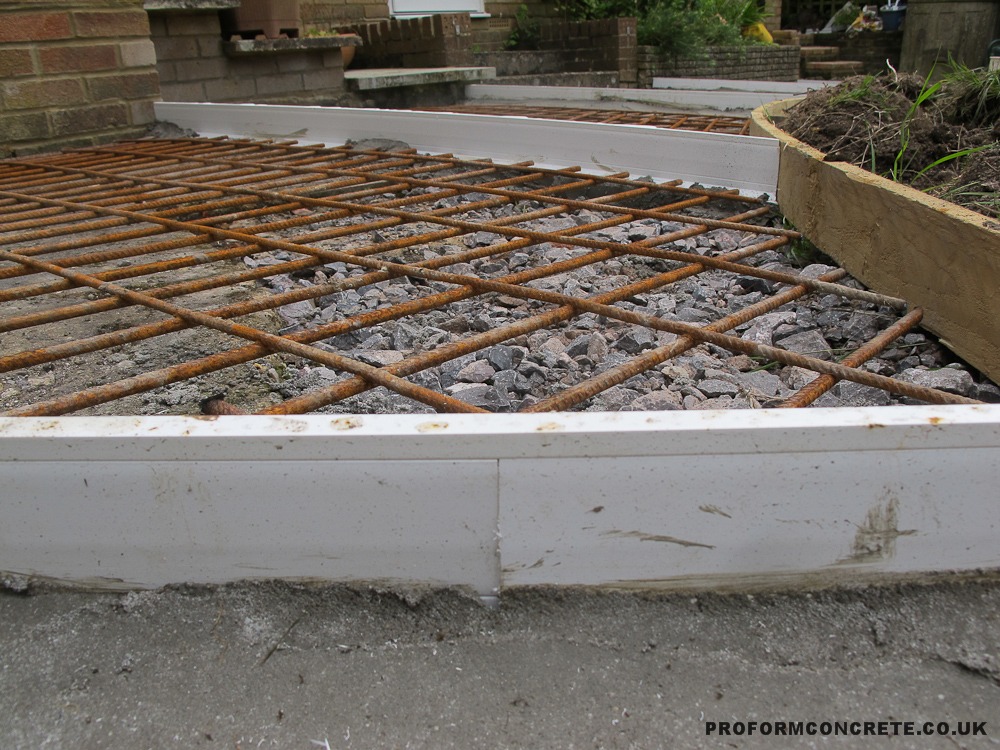

Step 1 – The area to be concreted is marked out and the levels are set using the Proform Screed Rails. The Proform is bedded in and allowed to cure sufficiently. Recommended minimum time is 24 hours or though longer is better.

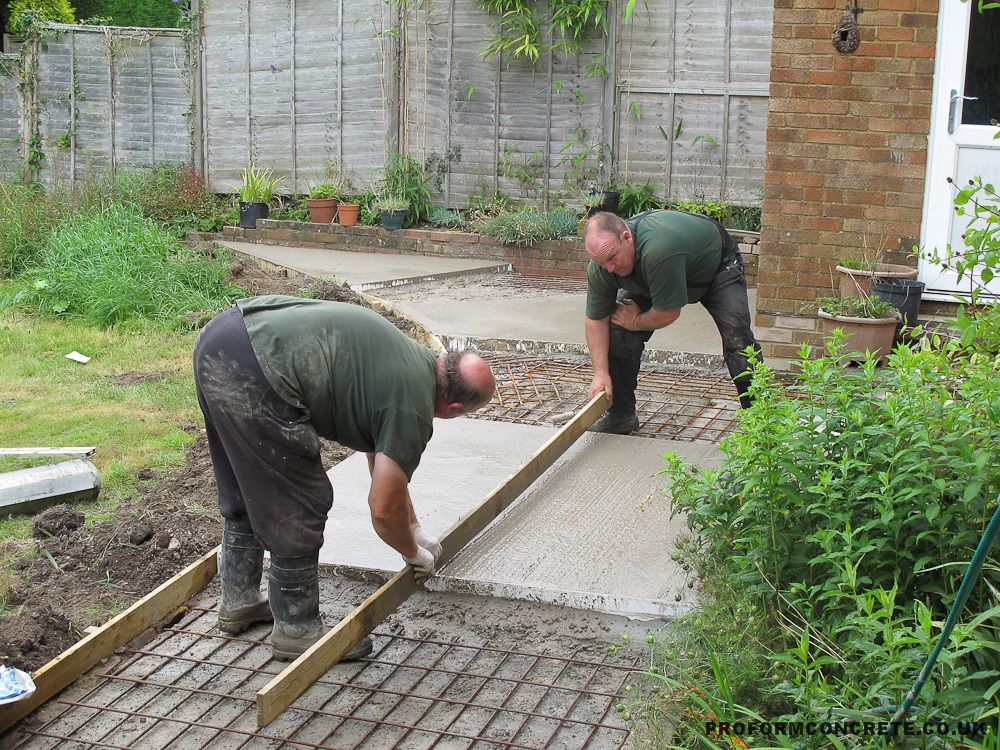

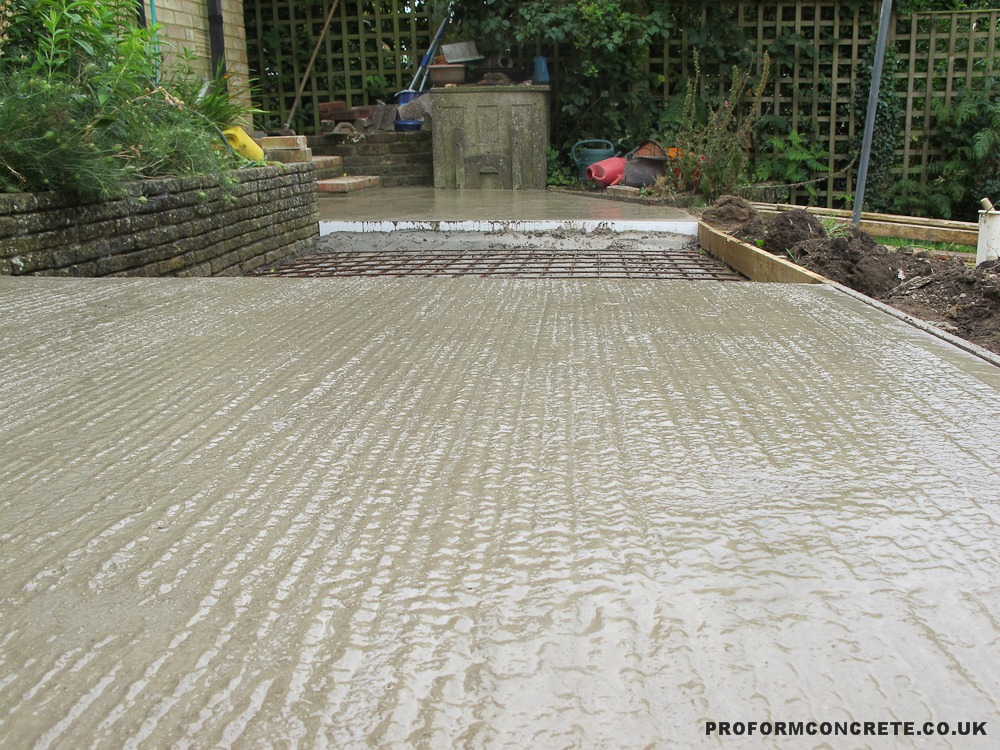

Step 2 – With all levels set, the main concrete pour is easy as the forms are in place. The time on site for the concrete lorry is reduced and any waiting time costs are minimized, therefore saving you money. The screed rails will control cracking to the lines you have set and they allow for the concrete to expand and contract reducing the risk significantly of uncontrolled cracking.
